Supermicro Server-grade motherboard / IPMI Smart Platform Remote Management Interface ( IP KVM )
Recommended number of people: less than 300 people
New 64-bit OS, hardware decentralized architecture system

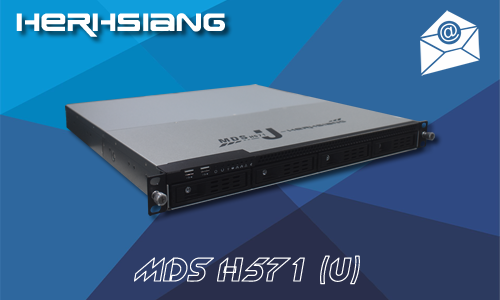

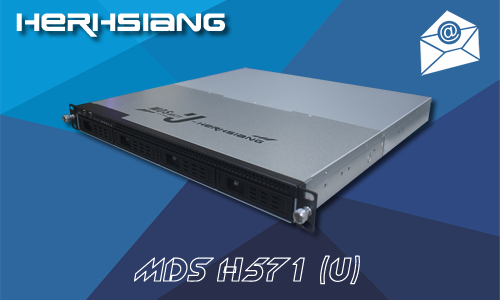

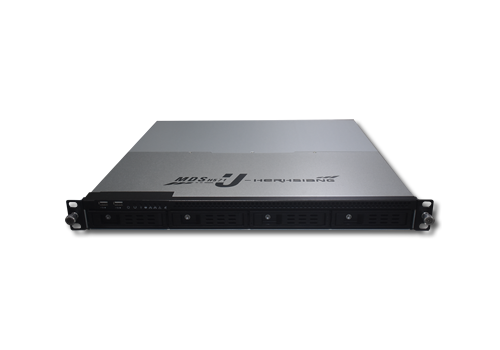

H57TA uses 1U 4Bay rack server planning
Built-in ECC SO-DIMM 16GB (expandable to 64GB)

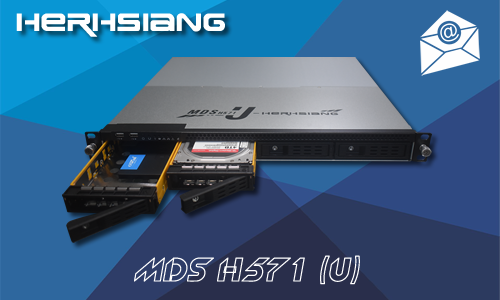

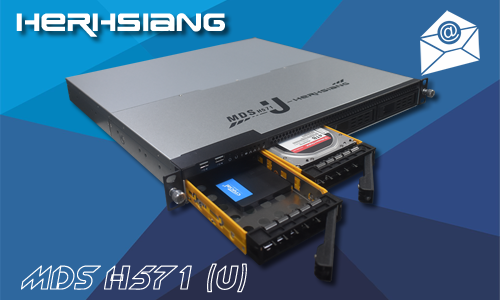

Built-in 2.5" SSD primary data disk 4TB*1 & NAS spare disk 4TB*1 (the spare disk can be used directly as the primary data disk)

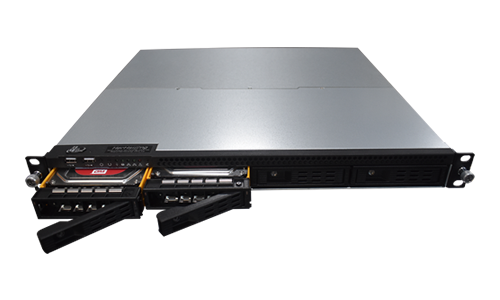

Reserve 2 Bay disk expansion space, can do up to 3 backup data disks or modify the hard disk capacity
No account restrictions / The maximum capacity of personal mail box can reach 100G (1MB~10GB arbitrary configuration)
AI Spam / Exclusive IOS Android Mail App transceiver software / Responsive Webmail / Support Wake-on-LAN
supports mail gateway function / supports mail encryption function
Built-in Kaspersky Anti-Virus or AI Spam 1 year (then one) / with dedicated slide rail

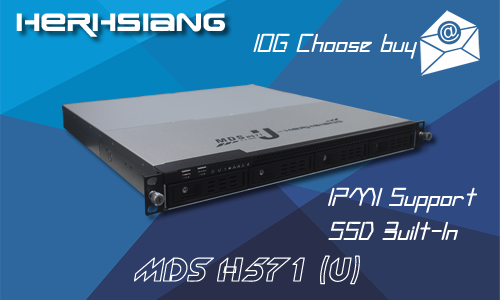

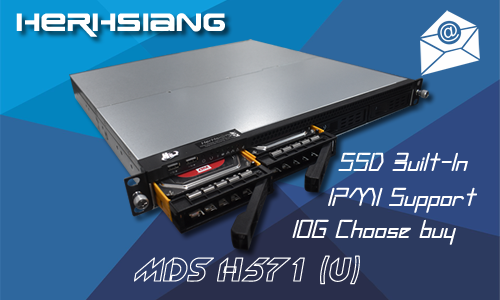

Optional items: Single Port 10GbE SFP+ fiber optic model [optional GBIC (RJ45 / single-mode / multi-mode)] dual-speed 10G&1G / 1U 250W Wedundant Power Supply / Threat Intelligence Dashboard / Kaspersky AntiVirus (1 year or 3 years) / AI Spam (1 year or 3 years)
Host hardware planning:Adopt a stable server motherboard, industrial-grade chassis, industrial-grade power supply. (Customers have used it for 10 years)
Data security planning:The data disk uses a 2.5" SSD 4TB, and the system backup disk uses a NAS-level HDD 4TB hard drive, and the two are automatically synchronized.
Advantages of security planning:ONBOARD synchronization is faster than USB and network backup, which can ensure that the data is saved in a short time. When the data disk is faulty and the data is damaged and cannot be used, MIS can directly use the system backup disk as a data disk, and the recovery speed is fast without waiting. Annoyingly long restoration time.
Strong capacity expansion:The memory can be expanded to the maximum capacity of the motherboard. In addition, when the capacity of the data disk is insufficient, you can use another 2bay spare hot-swappable box, purchase a larger capacity HDD, and set the system backup disk capacity to be used directly as a data disk after synchronization Then there is an increased capacity data space available. (The suggested maximum capacity can be used, please call for inquiry)
Full firmware configuration:The firmware of MDS mail server adopts a full-featured configuration. In addition to Kaspersky Anti-Virus, H571 does not have other optional functions. HERHSIANG needs to use the existing concept, which can reduce the time wasted by some necessary processes. It is enough to meet the company's needs in real time.
10G network speed model (optional)HERHSIANG offers optional 10G speeding models. In addition to the network speed of 10G [SPF+ interface (GBIC (RJ45/single-mode/multi-mode) is optional), the speeding speed can also be equipped with SSD so that enterprises and organizations of mid-level models can also enjoy speeding Fast pleasure.
It is recommended to use a UPS uninterruptible power system. When the power is restored, the UPS needs to wait for the battery capacity to charge up to the set percentage, and then wake up the remote device function.Generally, the equipment needs to wait until the UPS battery is completely out of power to 0% to restore the power supply before starting the remote equipment.Related functions can prevent the remote device from being unable to start the remote device after the power supply is restored after the remote device has been automatically shut down in advance when the UPS battery still has power.
IPMI Tool is an Out-of-Band IPMI tool that allows users to connect to system devices with IPMI through CLI (Command Line Interface).
The program provides two usage modes, namely: OS command line mode and Shell mode..
The program can be easily integrated with the existing infrastructure to connect with the server's baseboard management controller (BMC) to achieve the function of remotely configuring the system.
Main features of IPMI Tool:
IPMI View is an application software based on a graphical user interface that allows administrators to manage multiple systems through BMC.
IPMIView supports BMC compliant with IPMI v1.5 or v2.0.
IPMI View monitors and reports the status of the SuperBlade system, and supports remote KVM and mounting virtual media.
MDS H571 has a multi-domain independent mail system function (multi-DOMAIN). In addition to setting the domain name of its parent company, if it also needs to receive other branch domain name letters at the same time, you can enter other domain names on the system. There is no limit to the number of multi-domain names, which allows the enterprise mail system to have multiple mail domain aliases at the same time.
HERHSIANG Information has introduced a new AI Spam function module, which can make the judgment accuracy of mails as high as 99.5%. Through the judgment and analysis of mail content and sending behavior of the system function, it can automatically distinguish between normal and malicious or spam letters, and improve the level of spam letters It can also reduce the chance of users opening phishing letters.In addition, hacker attack methods are also constantly improving, they will forge emails to be the same as real emails, so MDS H571 mail host core system must constantly learn new attacks or emails that can be phished.The research and development unit has included these attack and phishing features in the calculation logic database as a basis for judgment, so that the AI Spam system can use the continuous self-learning mechanism to face the phishing letters and spam attacks that are attacked 24 hours a day throughout the year. It can also quickly make accurate judgments, thereby effectively reducing spam and phishing letters to users, causing unnecessary losses.
Phishing email attacks and infiltration methods have been continuously improved, from emails, pictures, file archives, web page advertisements, system vulnerabilities to encrypted ransomware. MDS H571 uses advanced tools (smart learning) to interpret all incoming and outgoing email data and analyze the threats that may be hidden in it. For example, use the spam classification engine to automatically learn the letter characteristics of SPAM and HAM to help identify thousands of malicious programs or viruses. MDS H571 will deal with the complex problem of email. Through the concept of interconnection and data sharing, the email data will be transmitted through the cloud intelligent learning system to prevent and track the source of malicious attacks.
Managers can compare the subject, attachment file (zip / rar), and extension by setting the rules and regulations to isolate and block e-mails that may be subject to ransomware attacks, reducing the harm of enterprises from ransomware attacks. In addition, in addition to infiltration by file attacks, e-mail attacks also include malicious link URLs in the text to trick users into clicking. The MDS H571 email system provides a URL body link filtering database, which breaks through the general filtering against the sender's source IP or domain. MDS H571 the body IP and domain can effectively prevent ransomware attacks.
Built-in two sets of anti-virus engines, Calm AV anti-virus engine (free) and Kaspersky (optional). Anti-virus software Clam AV can detect more than 4 million types of viruses, worms, and Trojans. No matter email, WEB, or FTP, it will automatically scan for viruses, update virus files automatically through the Internet daily, and provide rankings of virus messages Leaderboard report. Automatically check for virus patterns daily. Kaspersky Anti-Virus provides enterprise-class network security protection against viruses, malware, spam, and other threats, taking into account performance and detection.
SPF sender source verification can filter out letters from illegal hosts forged by legitimate domains; DKIM domain verification emails can be used to prevent email content from being tampered with. When sending the mail, the server signs the mail with the private key, and confirms the public key data recorded above with the sender's domain through DNS. It can be paired successfully with the private key, which means that the mail was indeed sent by the original sender. Both the receiving end and the sending end can use DKIM authentication to prevent spammers from spamming, sending spam letters through fake mail senders and fake private key signatures.
Most hacking methods will steal the recipient's letter, fake the sender's reply scam, and in order to make the recipient reply to the letter for verification and not be received by the original sender, the sender's name will be partially changed. , So that the recipient is deceived without any doubt about him. MDispersion H57TA2D mail security seal, provide personal verification seal and develop a seal icon, so that after receiving the letter, the recipient can return to the sending mail host through the link to confirm the original letter content, and check the confirmation letter sent Whether the content is consistent and consistent with the content.
Automatically filter and scan emails in accordance with corporate regulations or internal rules of the organization to detect inappropriate email behavior. Not only can scan the complete message content, but also perform keyword scanning for individual domains where the message is sent (outbound, inbound, outbound), and for filtering methods that meet the filtering conditions such as quarantine, delete, block sender IP, and send notification Letters, carbon copies, etc. can help system administrators comply with regulations inside and outside the enterprise.
For all the mail entering or leaving the mail server or mail gateway, along with the enclosing file, all the records are recorded, the user's computer letters are not visible, and can be forwarded to the user by the recorder, and can be automatically backed up to the network neighborhood or FTP Server, and provide corresponding fields for quick query and intercept reason query, which can help managers understand the status of mail exchanges. Quickly search and read email data backed up externally. The most important thing is that the format of the stored email is eml, which can be easily read or searched under any operating system.
With the function of automatic account creation, the original mail host account and letter can be automatically converted. The administrator does not need to re-enter the account number and password, which reduces the trouble of new and old mail host replacement and account creation. In addition to automatic account creation / transfer settings, it also provides user account manual creation and AD account integration modes.
"Creating a never-ending network", dual-machine backup allows the main mail host of an enterprise to stop working when there is an abnormal operation. The backup mail host will automatically take over as the main mail host, allowing the corporate mail host to stay on for 24 hours. working normally. The off-site backup is to set up a dedicated mail host in the head office and the branch office. When the mail host fails in any place, the system can automatically switch to another host to keep it running. There are interruptions, and truly offsite backup services are available.
Responsive Webmail
In response to the popularization of mobile phones in the trend of the times, the HERHSIANG mail server has a built-in responsive WEBMAIL, which supports computer/laptop/tablet/mobile browsers to facilitate sending and receiving messages outside.Any location is not limited, as long as you browse, write and send and receive emails directly through a browser (https), the connection transmission process is protected by an encryption mechanism to ensure the security of email communication.
In addition, it also provides many friendly operation functions, such as: email dragging, email preview, login verification, email subject association, content quick search, multi-level folders, personal email rules, personal signature files, and more importantly, shared folders , Auto-reply forwarding, delay sending letters... and many other powerful functions.
Outlook express style Webmail (transition module)
HERHSIANG mail server has built-in Outlook like Webmail, which is similar to Outlook express style user interface, which is convenient for users to use immediately. You can browse, compose, and send and receive emails directly through any browser (http or https). The connection transmission process is protected by encryption to ensure the security of email communication.
Users can steal passwords by using the same password on multiple websites, downloading software over the Internet, and clicking links in email messages. MDS H571 Webmail uses a two-step verification mechanism to ensure account security through LINE notification verification or backup email. Even if a bad person steals your password, 2-step verification still keeps your account secure.
In addition to the company's email account, users may have other important accounts in use. To grasp the latest information, they often need to log in to different browser pages to collect the letters all at once. In order to save users the time and convenience of receiving mails, the HERHSIANG mail server provides the function of POP3 proxy. All the mails can be collected by the local account, and users can also set their own POP3 proxy function through Webmail interface.
Allows users to synchronize the use of webmail and outlook contact list (including groups), MDS H571 provides Outlook Connector communication synchronization integration function, whether you use it in Outlook or Webmail interface, you can quickly and regularly synchronize with each other, allowing you to E-mail is easier and more convenient to use. MDS H571 mail server calendar can be integrated with Google Calendar, all schedules can be viewed on the same page, and meetings, work or private leisure time can be easily arranged.
Webmail's easy-to-use calendar tool also helps you manage daily events and calendars. And provides a group calendar function, so that you can also grasp all department-related activities at the same time. MDS H571 Webmail calendar not only has a web version of operating settings, but also provides APP applications (including IOS and Android), the two can be synchronized schedule.
Use the Web method to set and update the firmware. The operation screen can be switched to Traditional Chinese / Simplified Chinese / English at any time. You can open / close the remote control service of ping / http / https at will. Also provides a variety of network testing tools, including PING, Traceroute, DNS query, Port query and other tools.
The MDS H571 mail host allows enterprises to provide a more secure operating structure for gateways and terminals under the existing mail system architecture. Managers can convert entire .eml emails to encrypted PDF files for specific personnel, or only encrypt and compress the attachments of their emails to ensure that emails are stolen during transmission and leak important information. The recipient can use a PDF reader when receiving the email, and enter the password to view the original email content, including of course the attached attachment file.
For the set backup content, the backup is performed at a specified time. It is more convenient to directly use the USB slot on the HERHSIANG mail server interface for backup, making it easier for the administrator to maintain. After using USB HDD for full machine backup, if the local system hard disk fails, select the USB backup system hard disk to be used when booting, and the whole machine will return to the state before the backup, which can replace the tape drive to the system. Do permanent storage.
For the mail host, the hard disk plays an important role like the heart of the human body. It stores all the corporate emails. If the enterprise itself does not have a backup mechanism, there will be doubts about data loss when the hard disk is damaged. At this time, a remedy is possible. It's too late.
In view of this, the MDS H571 mail host provides a hard disk detection mechanism. Through real-time detection, the hard disk health status can be grasped, and related warning messages are provided to allow administrators an additional security protection mechanism.
DDRIII-RAM: ECC 16GB
SATA-III HDD: 2.5" SSD 4000GB*1 3.5" NAS red label 4000GB*1
Console: On-screen keyboard
USB 3.0 Port: 2
Number of people: Unlimited
System Management
Management settings using a browser (HTTPS)
Supported Service Agreement
ICMP, HTTP, HTTPS, SMTP, SMTPS, POP3, POP3S, IMAP, IMAPS
OnBoard web interface
1 LAN / 1 HA / 1 iSCSI / 1 IPMI Port (All Giga Port) [Single Port 10GbE SFP+ Optical Network Model (LAN)]
Hot extraction box (panel lockable, with key)
4
Use environment
Operating environment temperature: 0 ~ 60 ° C / Operating environment humidity: 5% ~ 95%
Safety certification
FCC, CE, UL, cUL
Model size
19" x 1U x 437.20mm (17.21" deep) (standard)
19" x 1U x 600mm (23.62" deep) (1U 250W Redundant Power Supply)
Power Supplier
Input power: 100 ~ 250 VAC (auto switching) / Power supply: 250 Watts / Power on automatically starts
Placement: rack
