Host hardware planning:Using strong stability server motherboard built-in IPMI, industrial-grade chassis, industrial-grade power supply. (Has been used by customers for 10 years)
Data security planning:The data disk adopts 2 enterprise SSD 4TB (RAID 0), and the system backup disk adopts 1 NAS grade HDD 8TB hard disk.
Advantages of security planning:When the data disk (RAID 0) fails and the data is damaged and cannot be used, MIS can directly use the system backup disk as a data disk, and the recovery speed is fast, without waiting for a long recovery time.
Strong capacity expansion:The memory can be expanded to the maximum capacity of the motherboard. When the capacity of the data disk is insufficient, the capacity can be expanded. Two data disks can be replaced with a larger capacity HDD. After the settings are synchronized with the system backup disk capacity, the data disk can be enlarged Capacity data space is available. (The suggested maximum capacity can be used, please call for inquiry)
Full firmware configuration:The firmware of MDS mail server adopts a full-featured configuration. In addition to Kaspersky Anti-Virus, H918X does not have other optional functions. HERHSIANG needs to use the existing concept, which can reduce the time wasted by some necessary processes. It is enough to meet the company's needs in real time.
10G network fast modelHERHSIANG 10G fast model, besides the network speed of 10G [SPF+ interface (optional GBIC (RJ45/single-mode/multi-mode)] is required for fast speed, it can also be equipped with SSD so that enterprises and organizations of high models can also enjoy fast speed.
IPMI Tool is an Out-of-Band IPMI tool that allows users to connect to system devices with IPMI through CLI (Command Line Interface).
The program provides two usage modes, namely: OS command line mode and Shell mode.
The program can be easily integrated with the existing infrastructure to connect with the server's baseboard management controller (BMC) to achieve the function of remotely configuring the system.
Main features of IPMI Tool:
IPMI View is an application software based on a graphical user interface that allows administrators to manage multiple systems through BMC.
IPMI View supports BMC compliant with IPMI v1.5 or v2.0.
IPMI View monitors and reports the status of the SuperBlade system, and supports remote KVM and mounting virtual media.
Supports two 3.5 ”SATA hard drives.
Support SATAIII interface to connect with host.
Support RAID 0, 1.
Supports a single hard drive with a capacity of more than 500GB.
Provide 2 Hot Swap hard disk extraction boxes, support online hard disk hot swap.
Support online automatic rebuild after updating the hard disk, the maximum rebuild speed is 200GB per hour.
Supports disk roaming technology.
Support sleep power saving mode.
Support online bad track detection and repair function.
Supports the function of delayed staggered startup of hard disks to reduce the power consumption when booting.

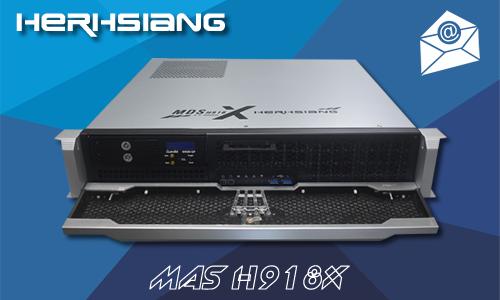

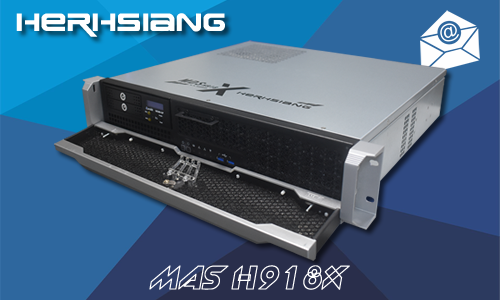

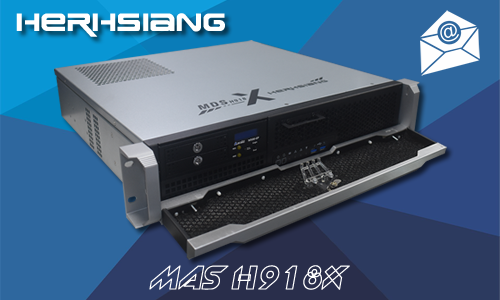

The front LCD display panel can monitor the hard disk status, system voltage, temperature, and fan operation detection.
With LED status indicator, hard disk access / fault indicator.
Support buzzer sound warning.
Built-in 5cm ball bearing cooling fan to increase system stability.
MAS H918 main functions include front-end gate protection capabilities (Anti-Virus, Anti-Spam, pre-mail audit, ransomware protection) and back-end audit capabilities (post-mail audit, mail record archiving, and mail history tracking). A single device can meet the email management needs of most enterprises. In addition to the basic record backup, the product also provides a complete internal and external, internal and external audit mechanism to review the mail received by employees.
Provide a stable, safe and stable storage space with unlimited capacity expansion.Archive the entire enterprise's mail to one or more My SQL Server / MariaDB database.Reduce the workload of the mail server. When the email is archived, the email can be deleted to keep the workload of the mail server at a certain level of operation.With mail data leakage protection function, it can filter email content and attachment files to prevent data leakage.Prevent users from deleting e-mails, avoid users from deleting important e-mails at will, and let enterprises have the risk of losing important information. The HERHSIANG archive server can completely eliminate this riskProvide cloud backup and archive cloud services such as Office365 and Gmail.Comply with relevant laws and regulations such as the Personal Assets Law and Business Secrets Protection Law.Mail can be quickly restored through the personal mail backup and restore process-even accidentally deleted mail!Provides webpage management mode, allowing users to search past emails from anywhere in the world.
HERHSIANG provides high-efficiency spam filtering functions. The Mail Gateway solution can be safely deployed on the front of the mail server. The original HERHSIANG Mail OS technology and multi-layer mail scanning mechanism can effectively block the increasing number of spam, viruses and malicious email , Springboards, phishing emails, spyware and other threats to help companies effectively manage email security protection and improve service quality.
MAS H918X has two built-in virus filtering engines, Clam AV and Kabbah Anti-Virus Engine (optional), which can accurately filter hidden viruses trapped in emails. Clam AV can automatically and automatically update the virus code for free. Millions of pens, so that enterprises can always stay up-to-date with the least cost. In addition, users can purchase a Kabbah anti-virus engine. The dual-engine protection can ensure mail security even more. All virus emails that are quarantined through the system provide complete virus filtering reports and records, and support Alarm.
Provides information, warnings, and errors and when they occur within the mail audit filtering facility. Simple and detailed log query service makes system maintenance easy and convenient. Its log management function is very comprehensive, and through WEB, it allows administrators to quickly query and search various types of system logs.
MAS H918X has a built-in post-mail archival audit mechanism, which can completely archive and store corporate emails. Whether it is external to internal, internal to external, or internal to internal, real-time archiving is performed. In addition to preventing users from deleting emails by mistake, Provide email resume graphs and provide a friendly keyword search mechanism. The system provides an interface for personal email archiving. Users can search online through IE, and search through keywords such as domain, user, sender / receiver, subject, email content, date, and attached files. Search archived messages, and read or retrieve the messages you need.
Through the device management interface, network administrators can adjust the conditions for sending and receiving mail according to the company's own mail policy settings. MAS H918X audit filtering equipment adopts the Policy method, and administrators can apply control rules based on the types of recipients, the subject of the message, the content of the message, the capacity of the message, and the file extension of the message. For personal information related conditions, He HERHSIANG also provides personal information filtering related to sensitive information, including ID card number, date of birth, phone number, credit card number, mobile phone and other conditions. When the detection meets the filtering conditions, you can choose to forward it to the auditors for quarantine, deletion, copying, or sending a notification letter.
Local storage record: HERHSIANG MAS H918X has a built-in 4TB hard disk capacity, which is archived according to the system default. The recorded mail is backed up to the database and stored in the local storage for 7 days by default.
External storage backup: Including USB backup, FTP backup, SAMBA (Network Neighborhood Backup), if the personal computer or mail host has an unexpected situation and cannot work, personal mail is still safely stored in the MAS H918X hard disk and storage device. MAS H918X can connect to multiple storage servers at the same time, and the administrator can directly search, retrieve or retrieve the backed up emails.
MAS H918X mail backup service can support cloud platform and storage services, provide a hybrid cloud (public cloud / private cloud) flexible platform, integrate existing Google, Microsoft Office 365 cloud mail services, in addition to allowing enterprises to continuously maintain audit data on cloud mail Capabilities can also allow corporate emails to be placed in different storage locations to achieve the purpose of diversifying risks and offsite backups.
Data's data analysis is an important feature of HERHSIANG's archive server. It can analyze the behavior of users, including correlation diagrams of mailing, abnormal mail analysis data, and user time analysis data, so that managers can better understand the enterprise. Internal user mail usage status.
The user rights decentralization setting is super flexible. Users' rights can be set at different levels, including whether they have a manager role or just general queryer or user rights. And can set different mail access and manager permissions. With the authorization of hierarchical management, enterprises can have more flexible control, safe use and management and maintenance. According to the decentralization and decentralization policy of the enterprise department, the authority and management items for each administrator to log in to the management interface can be defined, including system management, SMTP server settings, transparent mode, domain management, authentication, and authority management ...
HERHSIANG MArchive series equipment has no restrictions on the use of the number of people, which will vary depending on the hardware operating performance or the amount of corporate mail. The system provides a free firmware update service mechanism, including the garbage database signature code, and the Clam AV anti-virus engine, which greatly saves maintenance and management costs and reduces after-sales service operations.
CPU: INTEL E3 XEON E3-1200 V5 CPU
Motherboard: SUPERMICOR server grade
DDRIII-RAM ECC: 32GB (2 pieces of 16GB) dual channel
SATA-III HDD: 2.5" SSD (original factory warranty 5 years)4000GB *2 Shipping RAID 0 (RAID 0 1 for internal 2-layer disk array subsystem box)
Built-in backup hard disk (enterprise level 8000GB*1)
Console: On-Screen Keyboard
USB 2.0 Port: 4
Number of people: no limit
System Management
Admin settings using a browser ( HTTPS )
Supported Service Agreement
ICMP, HTTP, HTTPS, SMTP, SMTPS, POP3, POP3S, IMAP, IMAPS
OnBoard web interface
1 LAN / 1 HA / 1 IPMI Port (All Giga Port)
PCIe3.0 network interface card
2Define Port (Define Port 1 & 2) [2-Port 10GbE SFP+ Optical Module]
2 Define Port (Define Port 3 & 4) [2 Port 10GbE SFP+ Optical Module] (Optional)
use environment
Working environment temperature: 0~60°C / Working environment humidity: 5%~95%
Safety certification
FCC,CE,UL,cUL
Model Dimensions
19" x 2U x 550mm (21.65" deep)
Industrial control server grade PS2 POWER SUPPLY (power supply not for general PC use)
Input power : 100~250 VAC (Autosensing) / Power supply: 450 Watts or more / Power on and start automatically
Mounting method
Rack-mount models suitable for rack-mounting
Transparent mode (Bridge)
MAS H918X has a set of LAN Bypass mode, which can be set up in front of the main mail server. It uses Bridge mode to record all incoming and outgoing mail. As internal users of the enterprise may use a variety of mail software to receive mail (for example: outlook, Thunderbird …), Whether internal or external or internal to internal, the mail will be audited, filtered, spam filtered, and virus filtered through the MAS H918X mail audit and archiving device, and all communication emails will be completely recorded.
Gateway Mode
MAS H918X can also be used as a gateway for e-mail. After the virus and advertisement mails are completed, the clean mail is forwarded to the back-end mail server. The e-mail function usually consumes high system resources. Outlook users can also point SMTP to MAS H918X as a gateway for audit filtering, and then send the mail to the back-end mail server, or some enterprise users set up the mail server on a virtual machine (VM). The mode of receiving traffic is also applicable to the gateway mode.
POP3 / IMAP collection mode
Adopt POP3 and IMAP collection methods, similar to copying all incoming and outgoing mail to the device in Journal mode, whether the mail host is supported in the cloud (Gmail / 163 / Office365) or the internal Microsoft Exchange Server, IBM Lotus, just need Set the necessary information and download the messages to be backed up to the device.
