Standard 10G

Product Name

10KM/single mode

Model

MGB-XS10

Introduction

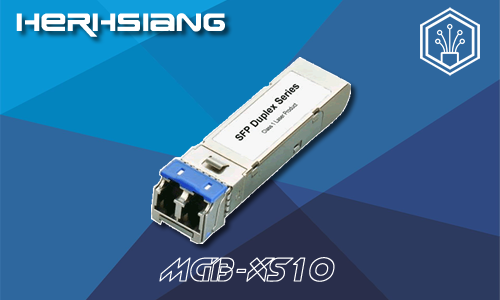

10GBase-LR Single-Mode 1310nm SFP+ Duplex Transceiver, DDM 10KM

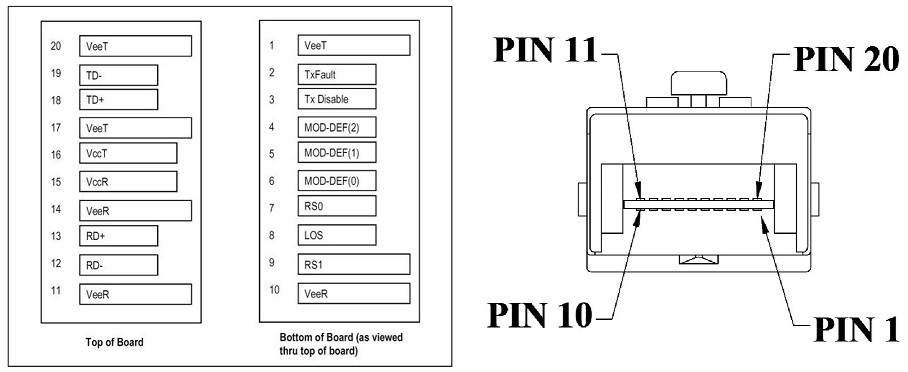

The MGB-XS10 is small form factor pluggable module for serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single-mode-fiber (SMF) and operates at a nominal wavelength of 1310 nm.

FOR NGS 5952HTG / 3542HTG & Cooperative Defense Switch

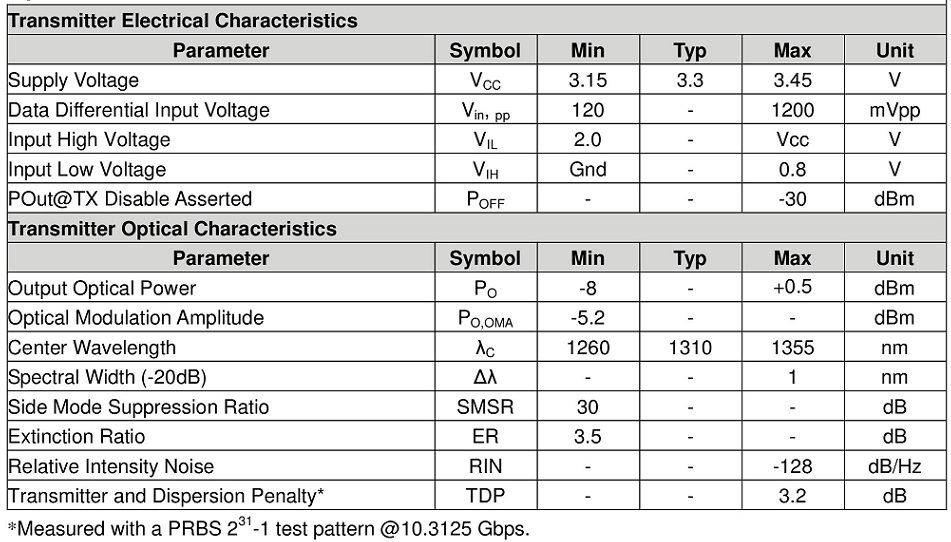

Transmitter Section

The transmitter consists of a high-performance 1310 nm MQW DFB structure laser in the optical subassembly (OSA), which is housed within a metal package. In addition, this component is also class 1 laser compliant with according to International Safety Standard IEC-60825 and FDA 21 CFR 1040.10 and 1040.11.

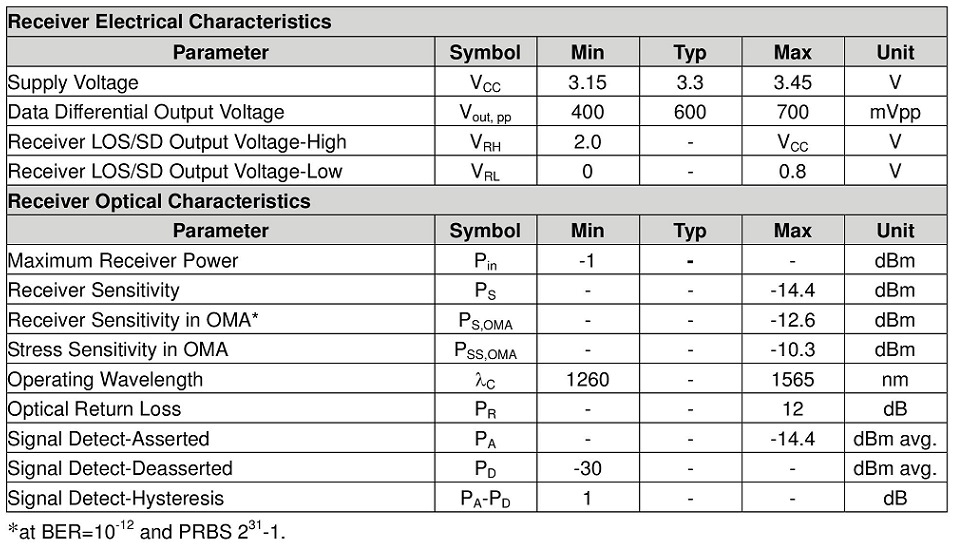

Receiver Section

The receiver contains of an InGaAs PIN photodiode coupled to a high sensitivity transimpedance amplifier (TIA) in an OSA. This OSA combination is mated to a post amplifier IC that provides the post amplification and SD (Signal Detection) or LOS (Loss of Signal) indication circuit, which provides logic high state output when an unusable input optical signal level is detected.

Features

Single +3.3V power supply voltages
Compliant with SFP+ MSA
Compliant with IEEE 802.3ae 10GBase-LR/LW standard
Compliant with SFF-8472 diagnostic monitoring interface for optical transceivers
AC/AC coupling according to MSA
Class 1 Laser International Safety Standard IEC 825 Compliant.
Complies with EN60825-1 and FDA 21 CFS 1040.10 and 1040.11
Commercial operation temp. : 0℃ to +70℃
RoHS Compliant

Application

High-speed Storage Area Networks
Computer Cluster Cross-connect
Custom High-speed Data Pipes
