Standard 10G
Product Name
30M/RJ45/single speed 10G
Model
MGB-RJ-10GT
Introduction

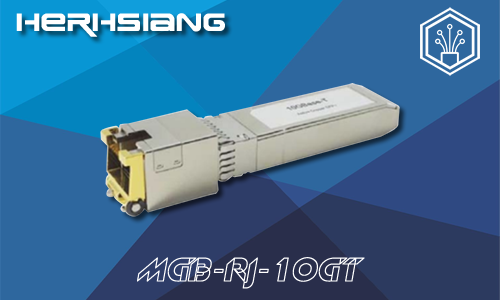

FiberLink MGB-RJ-10GT 10Gbps SFP+ 10GBASE-T Transceiver Hot Pluggable, RJ-45, Active Copper SFP+, 30Meter


Firewall MGB-RJ-10GT Small Form Factor Pluggable SFP Copper transceiver is compliant with the current SFP Multi-Source Agreement (MSA) Specification. The high performance design is integrated full duplex data link at 10Gbps over four pair Category 6a/7 cable up to 30meter links. It is specifically designed for high speed communication links that require10 Gigabit Ethernet over copper cable.

FOR NGS 5952HTG / 3542HTG & Cooperative Defense Switch
Docking requires a 10G switch or network card, CAT6a/7 (inclusive) or above network cable



Features
• Compliant with IEEE802.3an, 802.3ab and 802.3az standard
• Compliant with SFP-8431, 8432 SFP+ MSA
• Support 10GBase-T
• Hot Pluggable
• Auto-detect MDI/MDI-X on RJ-45 port
• Auto-negotiates with other 10GBASE-T PHYs
• Support RX_LOS function
• Support I2C 2-wire interface for serial ID
• SFP Interface : SERDES
• RJ-45 connector
• Single +3.3V power supply
• Link length up to 30m with four-pair Cat.6a/7 cable
• RoHS Compliant
Application
• 10GBase-T Application
