Standard 1G
Product Name
100M/RJ45/single speed 1G
Model
MGB-RJ-1GT
Introduction

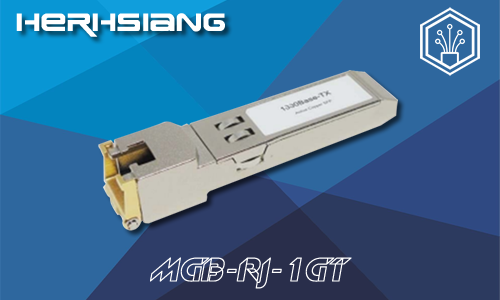

FiberLink MGB-RJ-1GT

1.25Gbps SFP 1000Base-T Transceiver Hot Pluggable, RJ-45, Active Copper SFP, 100Meter


Firewall MGB-RJ-1GT Small Form Factor Pluggable SFP Copper transceivers are compliant with the current SFP Multi-Source Agreement (MSA) Specification. The high performance designed is integrated full duplex data link at 1.25Gbps over four pair Category 5 UTP cable up to 100meter links.


FOR NGS 5772HG/5972HG/5952HTG, NTS 5572FR & Cooperative Defense Switch

Docking requires a 1G switch or network card, CAT5 (inclusive) or above network cable






Features
• Compliant with IEEE802.3-2002 and 802.3ab Standard
• Compliant with SFP MSA
• Hot Pluggable
• Auto-detect MDI/MDI-X on RJ-45 port
• MAC Interface : SERDES
• RJ-45 connector

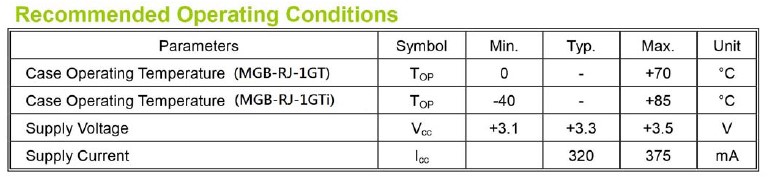

• Single +3.3V power supply
• Link length up to 100m with four-pair Cat.5 UTP cable
• RoHS Compliant
Application

• 1000Base-T Application

• High speed I/O for file serverl
• Mass storage system I/O
• Bus extension application
