Standard 1G

Product Name

10KM/single mode

Model

MGB-S10

Introduction

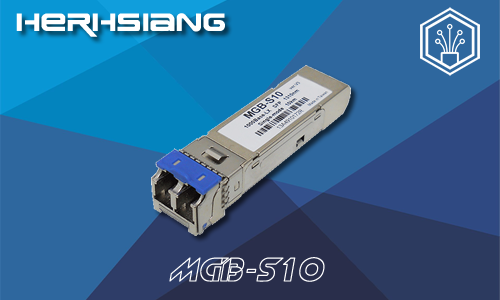

1.25Gbps Single-mode 1310nm SFP Transceiver, 10KM

The MGB-S10 transceiver from Firewall is small form factor pluggable module with standard LC duplex connector for fiber communications. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm with cost effective and high performance. It is with the SFP 20-pin connector to allow hot plug capability.

FOR NGS 5772HG/5972HG/5952HTG, NTS 5572FR & Cooperative Defense Switch

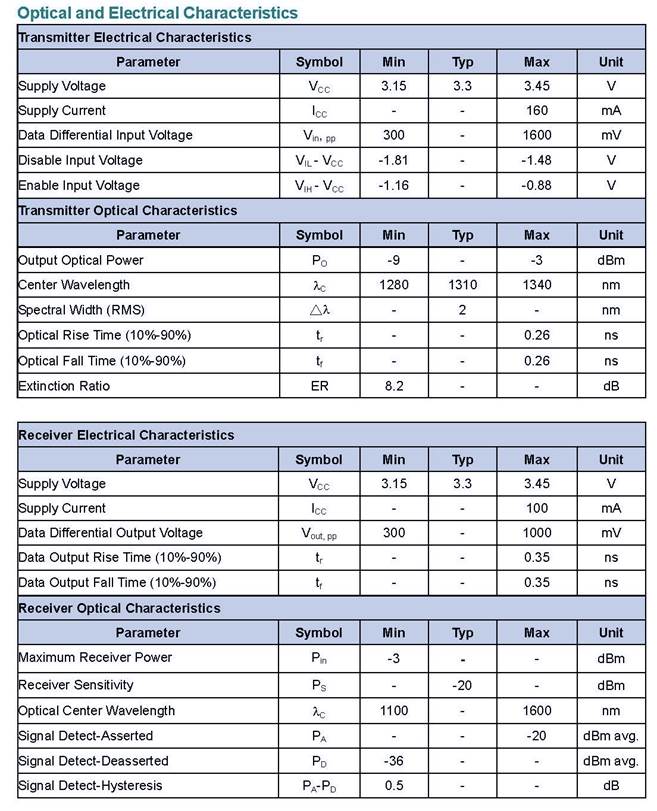

Transmitter Section

The transmitter consists of a high-performance 1310 nm Febry-Perot (FP), which is housed within a metal package. In addition,
this component is also class 1 laser compliant with according to International Safety Standard IEC-825

Receiver Section

The receiver contain of an InGaAs PIN photodiode coupled to a high sensitivity transimpedance amplifier (TIA) in an OSA. This OSA combination is mated to a post amplifier IC that provides the post amplification and LOS (Loss of Signal) indication circuit, which provides LVTTL logic high state output when a unusable input optical signal level is detected.

Features

Single + 3.3 V power Supply
Small Form Factor Pluggable MSA Compliant
Compliant with IEEE 802.3z Gigabit Ethernet Standard
PECL Differential Inputs and Output
TTL Signal Detect Indicator.
For Signal Mode Applications
LC Duplex Connector
EEPROM with serial ID functionality.
Class 1 Laser International Safety Standard IEC 825 Compliant
Temperature Ranges: 0℃ to +70℃ (MGB-S10)

Application

Bridges/Routers/Intelligent hub and concentrators
Gigabit Ethernet / Fiber Channel
Storage Area Network
