Product Name

500M/multimode

Model

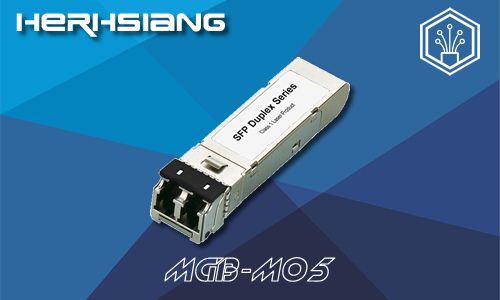

MGB-M05

Introduction

1.25Gbps Multi-mode 850nm SFP Transceiver, 0.5KM

The MGB-M05 transceiver from firewall is small form factor pluggable module with standard LC duplex connector for fiber communications. This module is designed for multi mode fiber and operates at a nominal wavelength of 850 nm with cost effective and high performance. It is with the SFP 20-pin connector to allow hot plug capability.

FOR NGS 5772HG/5972HG/5952HTG, NTS 5572FR & Cooperative Defense Switch

Transmitter Section

The transmitter consists of a high-performance 850 nm Vertical Cavity Surface Emitting Laser (VSCEL) in the optical subassembly (OSA), which is housed within a metal package. In addition, this component is also class 1 laser compliant with according to International Safety Standard IEC-825

Receiver Section

The receiver contain of an InGaAs PIN photodiode coupled to a high sensitivity transimpedance amplifier (TIA) in an OSA. This OSA combination is mated to a post amplifier IC that provides the post amplification and LOS (Loss of Signal) indication circuit, which provides LVTTL logic high state output when a unusable input optical signal level is detected

Features

Single + 3.3 V power Supply
Small Form Factor Pluggable MSA Compliant.
PECL Differential Inputs and Output
TTL Signal Detect Indicator.
For Multi Mode Applications
LC Duplex Connector
EEPROM with serial ID functionality.
Class 1 Laser International Safety Standard IEC 825 Compliant
Temperature Ranges: 0℃ to +70℃ (MGB-M05)
RoHS Compliant

Application

Bridges/Routers/Intelligent hub and concentrators
Gigabit Ethernet / Fiber Channel
Storage Area Network
